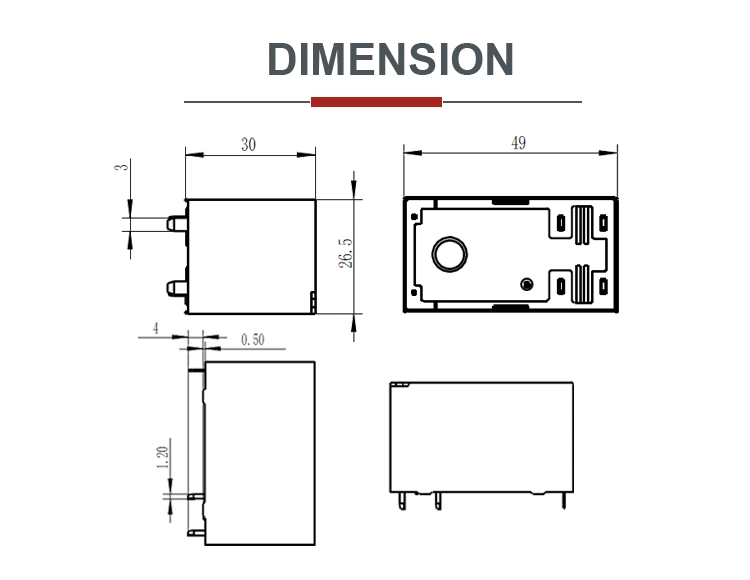

| Specification | Weight | ≈70g | |
| Continuous Current | 40A | ||
| Contact Form | 2A/2B | ||
| Contact Material | AgSnO2 | ||
| Max. Switching Voltage | 277VAC | ||
| Initial Contact Resistance | 10mΩ (at 20A) | ||
| Insulation Resistance | 100MΩ,at 500VDC,50% RH | ||
| Electrical Endurance | 5*105ops | ||
| Mechanical Endurance | 6*103 ops | ||
| Dielectric withstanding voltage | Across Open Contact | 4000VAC 1min | |
| Coil to Contact | 801:3000VAC 1min 801A: 4000VAC 1min | ||
| Pick-up & Release Time | 30ms. typical/10ms. typical | ||
| Environment Temperature | Operation:-40ºC~85ºC | ||
| Storage:-40ºC~125ºC | |||
| Vibration | 10-40Hz,DA1.27mm, 40-70Hz:5g 70-100Hz:DA0.5mm,100-500Hz:5g | ||
| Shock Resistance: | 20g, 11ms | ||
| Dielectric Strength | 500Vrms, 1 min | ||
Cautions of New Energy Relay:1.Ordering Information
1.1 The biggest differences between this new energy relay and traditional latching relay or power relay are:
the wider contact distance and stronger dielectric strength of 4000Vac instead of 1500 /2000Vac.
So the contact distance can be 3mm or normal type.
1.2 The nominal voltage of coil are 12Vdc and 24Vdc with the low power consumption of 1.8W or 3W.
Plz note that you should drive the circuit/coil with step-down voltage to ensure power consumption of 1W~1.5W.
1.3 Two poles of contacts of this relay, it means it can control 2 circuits and the default status is 2A- normally open.
Simply put, if you buy it as ev relay then most time the relay is open and not work, some times they are closed when charging.
1.4 For environment-friendly, you can also choose this relay with lead or without lead (RoHs compliant)
1.5 For more extra request on this relay plz feel free to contact us.
2.Application:
The typical application of this 40A new energy relay is AC slow charging pile.However if you would to adopt it into new area,
plz don't hesitate to communicate with us at any time.The technical support and before-sales service are free for you.
